Ironmaking History in Manhole Covers and Grates

The continuing lockdown has allowed me to walk the streets of Redcar in more detail than ever before. Whilst there are many modern replacements, the story of our areas ironmaking past is still all around us.

Redcar Manhole
Borough of Redcar, Anderston Foundary, Middlesbrough
Redcar Grate
Borough of Redcar, Anderston Foundry, Middlesbrough, 1934

I have previously described the two Anderston Foundry example immediately outside my house. Manufactured in Port Clarence at the far end of the Transporter.

IMG_20200402_140813156_HDR
W. Richards & Sons Middlesbrough

W. Richard and Sons were based at the Britannia Foundry, North Ormesby Road.

Pease and Partners, MIddlesbrough
Pease and Partners

This Pease and Partners cover is likely to have originated somewhere in the Tees Iron Works site at Cargo Fleet.

Zetland Foundry, Loftus
Zetland Foundry, Loftus

The Zetland Foundry at Loftus despite its small size is still in existence today !

This final one is still confusing me, it appears to say Robinson and Bradley, Middlesbrough. But I can’t find any references to that company and its got the same logo as the one I assumed at the beginning to be Anderston Foundry !

Back to the drawing board perhaps ?

Robinson and Bradley, Middlesbrough

Borough of Redcar Grate and Manhole Cover – Anderston Foundry

I don’t think it’s possible to stay any closer to home as this is outside my house and I had never noticed it. Most grates have been changed and modernised over the years, but I seem to have an original from the Borough of Redcar. The 1934 date ties in with the construction of my street in Redcar East.

Redcar Grate
Borough or Redcar 1934

Anderston Foundry was based in Glasgow, but expanded to Middlesbrough in 1874, being based at Port Clarence on the North bank of the Tees, next to the Transporter Bridge.

Anderston Foundary

A couple of steps further away is a Borough or Redcar manhole cover, presumable also an original from 1934, i’m going to hazard a guess that the central AFC logo is for the Anderston Foundry Company.

Redcar Manhole

Cleveland Salt Company – Vulcan Street

In 1859 a borehole was started at Bolkow and Vaughans’ Middlesbrough Ironworks in search of a clean water supply for use in their boilers, instead of dirty water from the Tees. By 1862 at a depth of 1200ft a bed of rock salt was discovered that was almost 100ft thick.

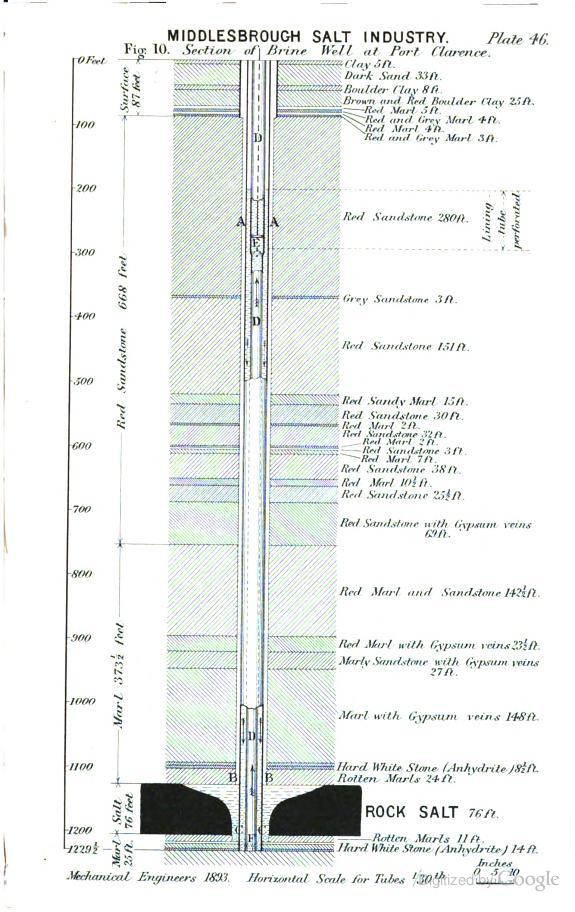

Local geology

The Cleveland Salt Company was formed in 1887 to exploit this resource for the
fledgling chemical industry, Carl Bolckow nephew of Henry was one of the first
board members, fresh water was pumped down into the salt bed which it dissolved,
brine was then pumped out and evaporated in large pans to drive off the water and
extract the salt.

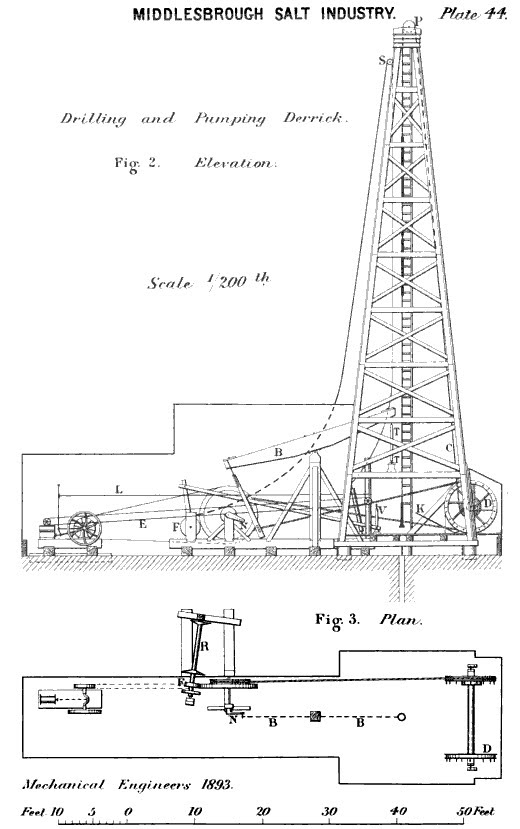

Derrick


The six original pans were initially fired by waste hot gas from the Middlesbrough Ironworks blast furnaces, this was expanded to thirteen pans in 1889. In 1920 the blast furnaces were blown out and the pans had to be converted to run on coal.

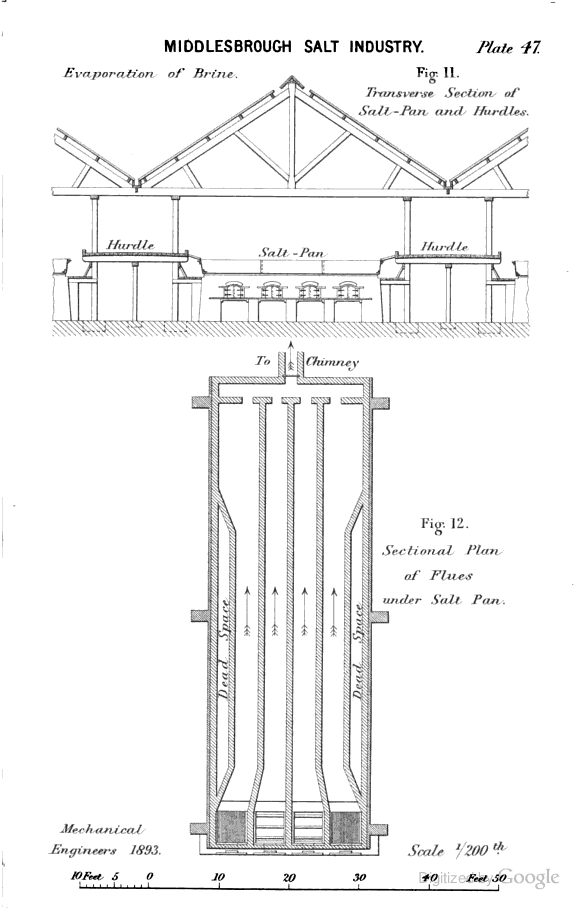

Brine Pans


A total of four wells existed in the companies’ lifetime, The original No.1 was
abandoned in 1893 due to a roof fall, No.2 and No.3 from 1888 and 1893 respectively
operated until around 1938 when they started to become choked. So No.4 which had
been an incomplete well started in 1896 was re-started, but was not completed until
1941 due to drilling problems and the outbreak of the Second World War.

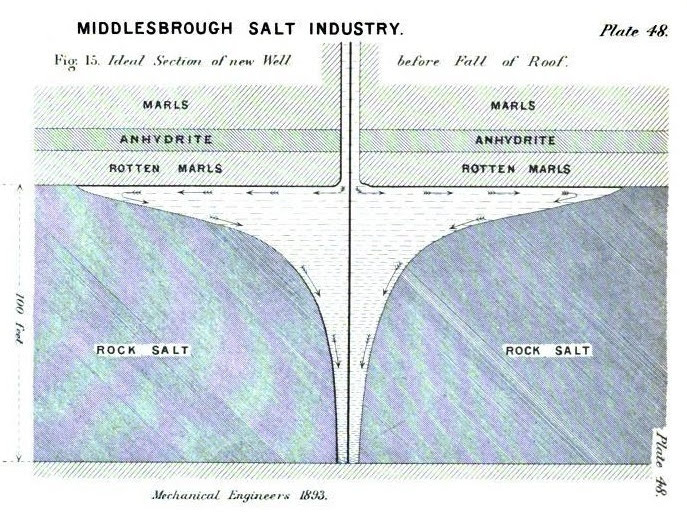

Well section

In 1945 and 1946 there were roof falls in the remaining No.4 well after which the evaporation pans were never restarted. The company wound up in 1947 having produced 879,972 ton of salt in 59 years.

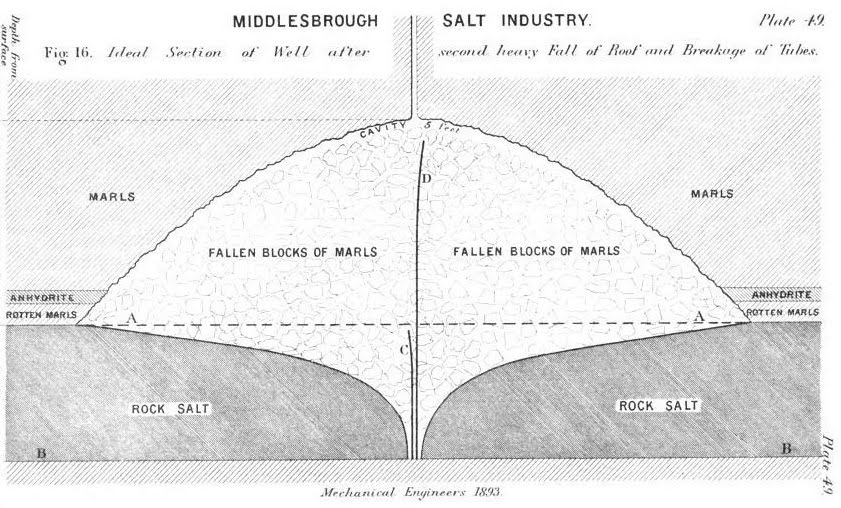

Well section after collapse


Making a few calculations, that suggests a volume of over 400,000 cubic meters, or
165 Olympic Swimming Pools. It’s an interesting thought that there must now remain
a huge water-filled void under the area, most likely under the river and Transporter
Bridge !

Vulcan Street

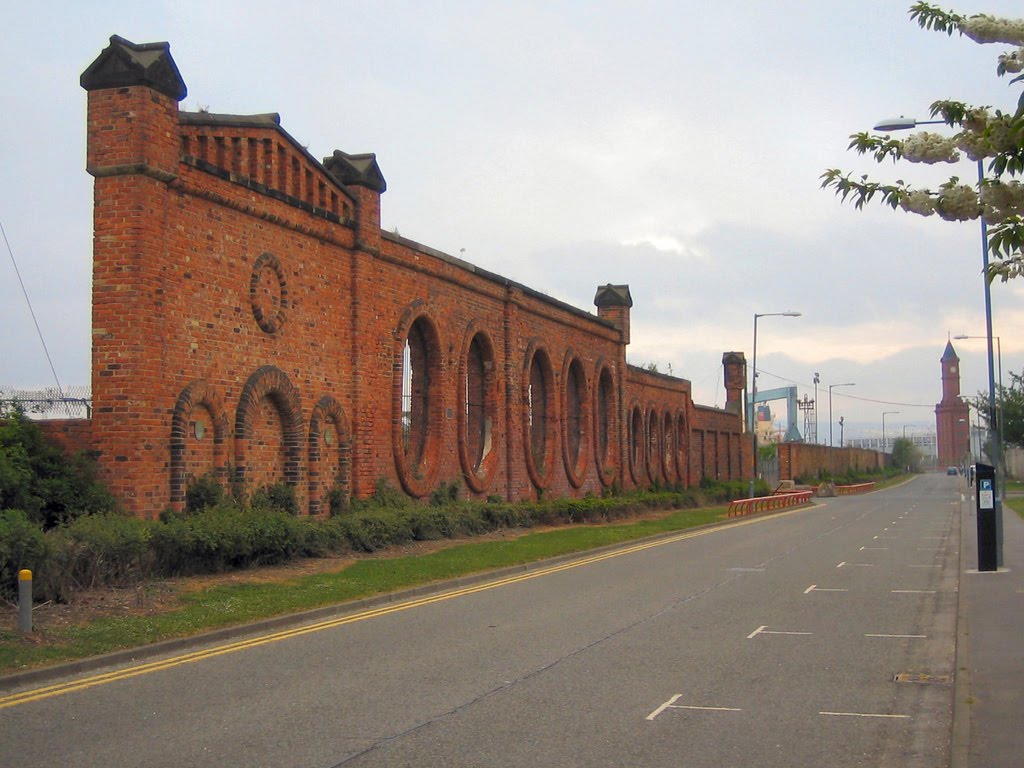

Today all that remains is the impressive red brick boundary wall on Vulcan Street
dating from 1887. This became a listed building in 1988, however it’s not totally
original as it was rebuilt from other interesting sections of the original building by the
Cleveland Community Task Force, Middlesbrough Council and the Davy Corporation
in 1982.

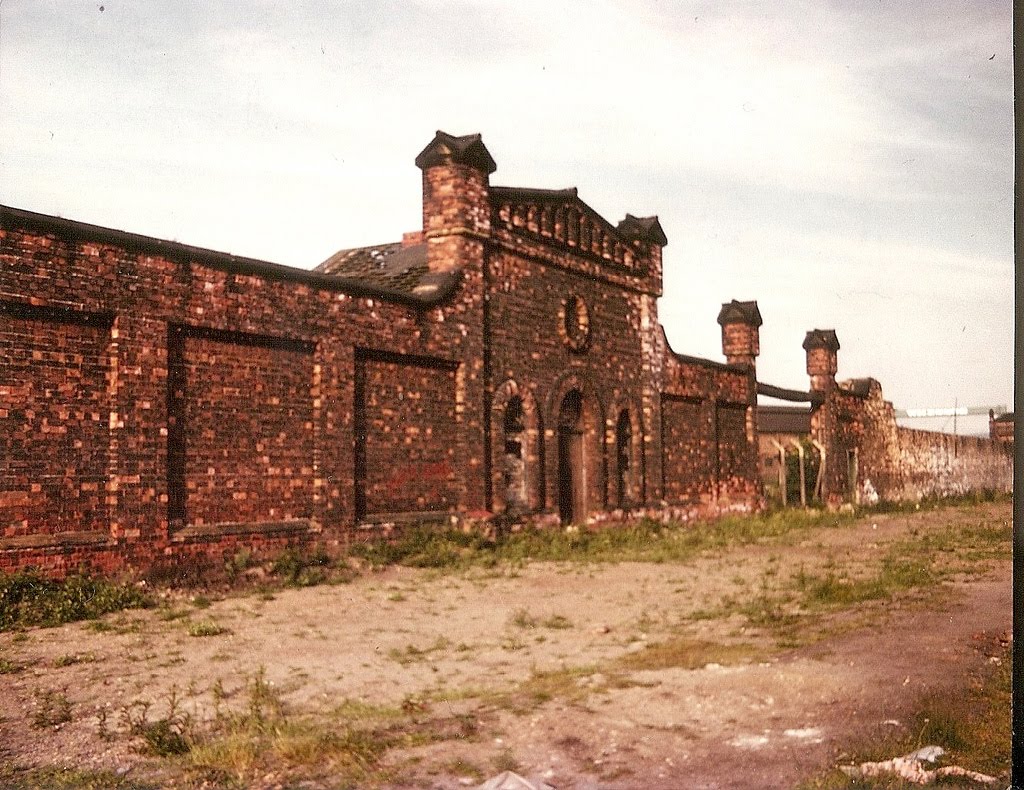

Pre-restoration
Pre-restoration
